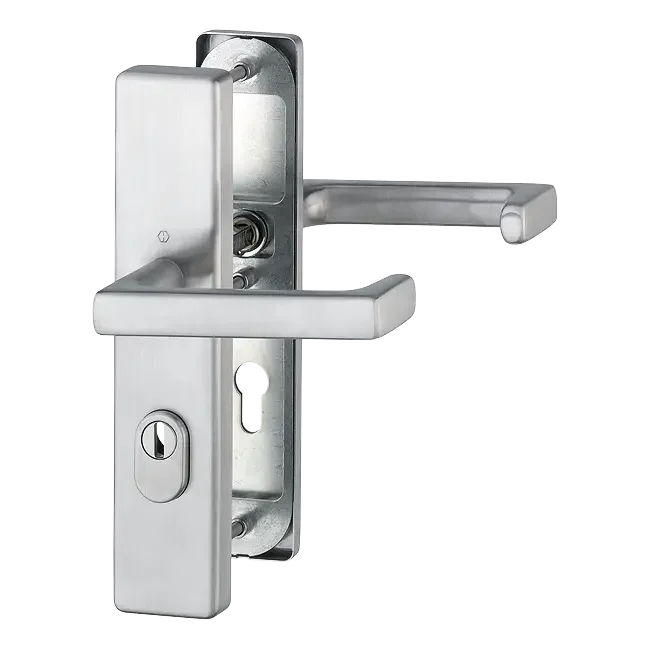

HOPPE Dallas Door Handle Set for Fire Doors with Cylinder Protection, Stainless Steel F69

HOPPE Dallas protective handle set made of stainless steel on a long plate (handle-handle) for fire doors:

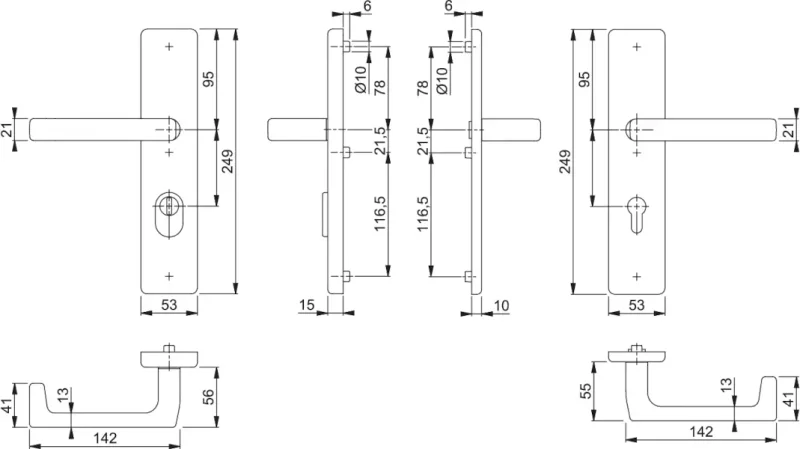

• Distance - door thickness: 72 mm - 42-47 mm (from the center of the handle spindle to the center of the keyhole)
• Spindle dimensions: 9 mm
• Product type: object handle, door handle set (handle/handle)
• Opening: cylinder cover - adjustable within the range of 10-18 mm

• Color: stainless steel

• Usage category: 4 - what does it mean? check here
• Security class: ES1

• Connection: HOPPE-quick coupling with full spindle HOPPE, possibility to use a spindle of different length
• Construction: Fixed/rotating handles, maintenance-free sliding bearings, plastic ring between handle and plate
• Internal construction: outer steel, inner aluminum with stabilizing pins
• Mounting: concealed, M6 screws, through hole
• Tested according to:
  • fire protection tested DIN 18273
  • compliant with standard DIN 18257 ES1 and DIN EN 1906: 47-D1142U (SK2)
